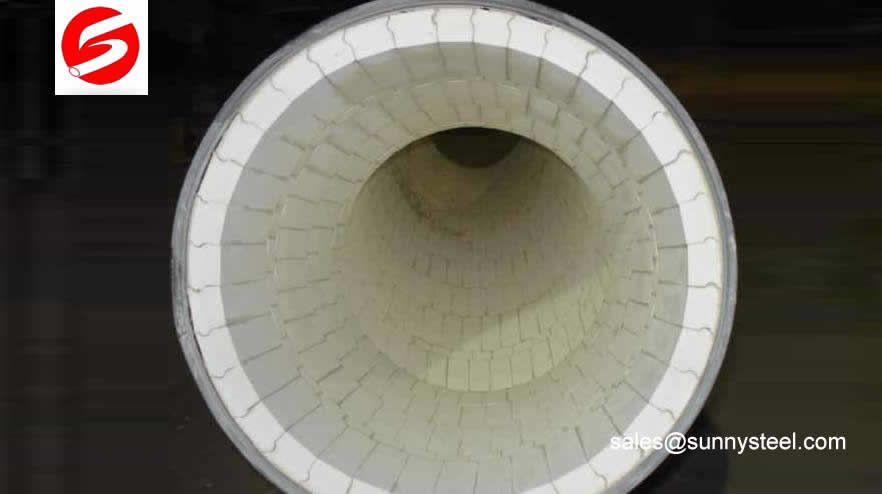

Large diameter ceramic lined tile pipe can be customized to produce 630-1200mm pipe diameter, ceramic layer thickness can be customized.
Large-diameter ceramic patch wear-resistant pipeline is the use of high temperature strong adhesive will be used to paste alumina ceramic plate in the pipe wall, after the heat curing to form a solid anti-wear layer.
Ceramic patch composite pipe using ceramic-metal composite fabrication technology principle, special corundum ceramics, made from Al2O3 as raw material, with rare metal oxides as solvents, and sintered at high temperature by 1730 ℃, are combined with wear-resistant ceramic pieces and block bricks in the pipe wearing surface through bonding, welding, inlay, riveting and socket technology. Thus forming a surface with excellent abrasion resistance, and the matrix still uses the composite pipe of ordinary metal material. Can root
According to different needs of the choice of wear-resistant ceramic patches, to meet the special needs of users of technical conditions. Compared with the traditional all-metal high alloy pipe fittings, the working face has higher abrasion resistance, which can make the whole wear-resistant and anticorrosion service life of the pipe increase several times to dozens of times times. Overall weight of the first mate down, reduce the amount of steel, reduce the cost of equipment and maintenance costs, improve economic efficiency.
Ceramic Patch Composite pipe application range:
- Power Plant Boiler pulverizing system piping, including, pipeline, powder separator pipe, coal drop pipe, combustion system of the first wind pipe, two times wind pipe, three pipe and burner pipe, ash discharge system slag removal pipe, back powder pipeline, dry ash conveying pipeline;
- Steel plant raw material conveying pipeline, receiving pipeline, dust pipe, ash pipe, ash pipe, mixing pipe, grinding outlet pipe, coal pipe, pulverized coal pipe, separator pipe, burner circumference pipe and so on wear elbow;
- Cement Plant selection Machine export pipeline, the selection of machine inlet pipe, dust collection pipeline, vertical mill wind pipe, circulation duct, coal mill high temperature fan wind pipe, blanking pipe and other wear elbow;
- Oil, chemical, mining, coal, washery, smelting, papermaking, aluminum, building materials, powder engineering, grain machinery and other processing, conveying materials of various pipe fittings.
