End caps

End caps are usually used for protecting the end of pipe and other fittings, so the shape are designed according to the shape of pipe line.

Large size caps

Stainless steel end caps

Carbon steel caps

A234 WPB Pipe Cap

Pipe caps DIN 2617

Pipe caps DIN 28011

ANSI B16.9 / 16.28 caps

Torispherical head

Vessel heads

General standard of fittings

ASTM A234/ASME SA234M

Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service

ASTM A420

Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low-Temperature Service

ASTM A403

ASTM A403 Standard specification covers the standard for wrought austenitic stainless steel fittings for pressure piping applications.

ASME B16.9

ASME B16.9 Standard covers overall dimensions, tolerances,ratings, testing, and markings for factory-made wrought buttwelding fittings

ASME B16.28

ASME B16.28 Standard covers ratings, overall dimensions, testing, tolerances, and markings for wrought carbon and alloy steel buttwelding short radius elbows and returns.

ANSI/ASME B16.25

ANSI/ASME B16.25 Standard covers the preparation of butt welding ends of piping components to be joined into a piping system by welding.

MSS SP-97

This Standard Practice covers essential dimensions, finish, tolerances, testing, marking, material, and minimum strength requirements for 90 and 45 degree integrally reinforced forged branch outlet fittings of buttwelding, socket welding, and threaded types.





Key Specifications/Special Features:

Pipe Cap are used for connecting pipes of different diameters and find wide applications in various chemicals, construction industries, paper, cement & ship builders.

Pipe caps are widely well-known for the utmost output and outstanding results that it gives.

Size range:

• Out diameter: 1/2"-60" DN15-DN1500

• Wall Thickness: sch10-80s
• Pressure: SCH5 to SCH160v
• Max. wall thickness: 200mm

Bending, squeezing, pressing, forging, machining and more

Manufacturing Standards of Buttweld Pipe End, Buttweld Pipe Cap

• ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
• DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
• EN: EN10253-1, EN10253-2
• ASTM A403 – ASME SA403 Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
• ASME B16.9 Factory-Made Wrought Fittings Buttwelding
• ASME B16.25 Buttwelding Ends
• ASME B16.28 Wrought Steel Short Radius Elbows and Buttwelding Returns
• MSS SP-43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Buttweld Pipe End Material Grades

• Stainless Steel Pipe Cap ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
• Carbon Steel Pipe Cap ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
• Low Temperature Carbon Steel Pipe Cap ASTM A420 WPL3, A420 WPL6
• Alloy Steel Pipe Cap ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
• Duplex Pipe Cap ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
• Nickel Alloy Pipe Cap ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

---

Mark and packing

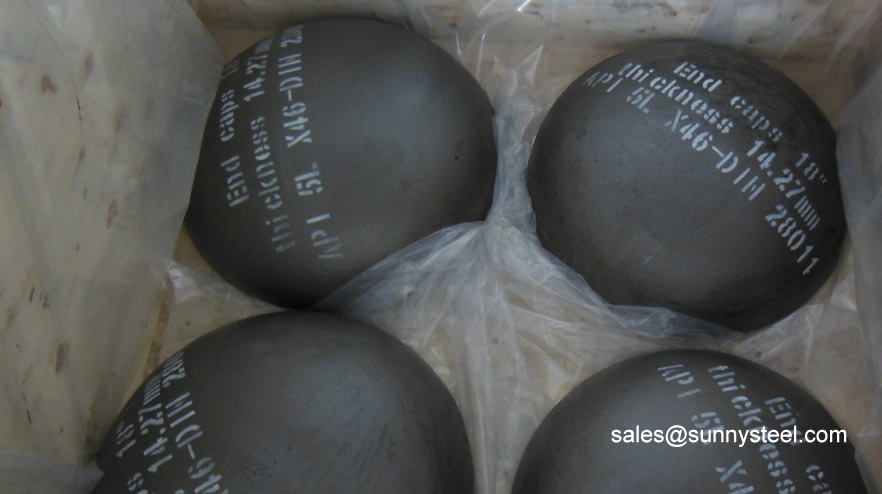

End caps 18" API 5L X46 - DIN28011

End caps 22" API 5L X46 - DIN28011

End caps 48" API 5L X46 - DIN28011

End caps 18" API 5L X46 - DIN28011

Protected by plastic cover

Packing in wooden cases

---

How to get high quality pipe cap?

Pipe cap acts as protective device and are designed to protect pipe ends of various shapes. The main purpose of using pipe caps is to waterproof the connections. They are also used to close the the ends of hydraulic or pneumatic pipes and tubes. They are used in the plumbing apparatus of domestic, commercial and industrial water supply lines, machinery and processing equipment etc. They are also fitted on water pump lines with the sole purpose of removing air blocks. Pipe caps are highly demanded as an important category of pipe fittings.

How to connect pipeline with pipe cap?

Pipe Cap is directly welded to die at the end of the pipeline; at the end of the pipeline can also welding flange, then with a blind flange to death, when necessary can open the blind flange, pipeline check inside. The conventional cap holder with pressure pressing made by thick wall; forging; by spinning large diameter. The need for maintenance or even after the connecting line, with blind, not later, with a pipe cap. With the blind plate has the possibility of leakage, there is a long time, and screw rust died, as useless, the heat pipe is not very easy to heat insulation.

If a solvent-weld cap is used to provide for a future connection point, several inches of pipe must be left before the cap; when the cap is cut off for the future connection, enough pipe must remain to allow a new fitting to be glued onto it.

SURFACE TREATMENT:

• Transparent oil, rust-proof black oil or hot galvanized.
• Special design available All the production process are made according to ISO9001:2000 strictly.
• Based on different materials, pipe caps include carbon steel cap, stainless steel cap, and alloy steel cap etc.
• Depending on their construction, pipe caps contain threaded cap, tapered cap and anti-roll cap etc.

---

End cap size data

Sunny Steel are Manufacturer, Exporter and Supplier of Pipe Cap. Pipe caps are widely well-known for the utmost output and outstanding results that it gives. Pipe Cap manufactured using superior grade raw materials.

 Pipe Cap are used for connecting pipes of different diameters and find wide applications in various chemicals, construction industries, paper, cement & ship builders

Out diameter		High size		Wall thickness accord to 'E'
DN	NPS	E	E1	E
15	1/2	25	25	3.73
20	3/4	25	25	3.91
25	1	38	38	4.55
32	11／4	38	38	4.85
40	11／2	38	38	5.08
50	2	38	44	5.54
65	21／2	38	51	7.01
80	3	51	64	7.62
90	31／2	64	76	8.08
100	4	64	76	8.56
125	5	76	89	9.53
150	6	89	102	10.97
200	8	102	127	12.7
250	10	127	152	12.7
300	12	152	178	12.7
350	14	165	191	12.7
400	16	178	203	12.7
450	18	203	229	12.7
500	20	229	254	12.7
550	22	254	254	12.7
600	24	267	305	12.7
650	26	267
700	28	267
750	30	267
800	32	267
850	34	267
900	36	267
950	38	305
1000	40	305
1050	42	305
1100	44	343
1150	46	343
1200	48	343

• Size range: 1/2 to 56 inches (DN15 to DN1400)
• Pressure: SCH5 to SCH160v
• Wall Thickness:sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s
• Max. wall thickness: 200mm

Size range of A234 WPB Large Diameter Pipe Cap

OD	ND	INCH	SCH20	SCH40	SCH80	STD	XS
			Weight	Weight	Weight	Weight	Weight
88.9	80	3		0.66	0.92	0.66	0.92
114.3	100	4		1.17	1.67	1.17	1.67
141.3	125	5		1.91	2.78	1.91	2.78
168.3	150	6		2.9	4.47	2.9	4.47
219.1	200	8	4.09	5.19	8.05	5.19	8.05
273	250	10	6.36	9.15	12.5	9.15	12.5
323.8	300	12	9.08	14.4	26.8	13.2	17.3
355.6	350	14	13.2	18.8	34.5	15.9	20.4
406.4	400	16	16.8	26.7	47.7	20.4	26.3
457.2	450	18	24.8	41.8	67.7	25.9	33.6
508	500	20	32.2	54.9	91.3	32.2	42.7
558.8	550	22				37.7	49.9
609.6	600	24	46.3	93.1	155	46.3	59.5

Based on different materials, pipe caps include carbon steel cap, stainless steel cap, and alloy steel cap etc.

Depending on their construction, pipe caps contain threaded cap, tapered cap and anti-roll cap etc.

DIN 2617 Pipe End Cap Dimensions

		WDR
		3	4	5
DN	d1	s	s	s	h
15	21.3	2	3.2	4	25
20	26.9	2.3	3.2	4	25
25	33.7	2.6	3.2	4	38
32	42.4	2.6	3.6	4	38
40	48.3	2.6	4	5	38
50	60.3	2.9	4.5	5.6	38
65	76.1	2.9	5	7.1	38
80	88.9	3.2	5.6	8	51
100	114.3	3.6	6.3	8.8	64
125	139.7	4	6.3	10	76
150	168.3	4.5	7.1	11	89
200	219.1	6.3	8	12.5	102
250	273	6.3	8.8	14.2	127
300	323.9	7.1	10	16	152

DIN 28011 Pipe End Cap Dimensions

ISO - dimensions

dimensions d1 x s	height L	weight / kg
21,3 x 2,0	9,0	0,01
26,9 x 2,0	9,0	0,01
33,7 x 2,0	13,0	0,02
42,4 x 2,0	13,0	0,04
48,3 x 2,0	13,5	0,05
60,3 x 2,0	18,5	0,07
76,1 x 2,0	20,5	0,10
88,9 x 2,0	25,0	0,15
114,3 x 2,0	28,0	0,26
114,3 x 3,0	29,0	0,39
139,7 x 3,0	38,5	0,60
168,3 x 3,0	47,5	0,90
219,1 x 3,0	63,5	1,32
273,0 x 3,0	93,0	1,95
323,9 x 3,0	102,0	2,70
355,6 x 3,0	109,0	3,80
406,4 x 3,0	123,0	5,00
457,2 x 3,0	123,0	6,10
508,0 x 3,0	133,0	7,60

Metric dimensions

dimensions d1 x s	height L	weight / kg
20,0 x 2,0	9,0	0,02
25,0 x 2,0	9,0	0,03
30,0 x 2,0	13,5	0,03
35,0 x 2,0	13,5	0,04
44,0 x 2,0	15,0	0,04
54,0 x 2,0	15,0	0,05
70,0 x 2,0	19,5	0,07
84,0 x 2,0	24,0	0,15
104,0 x 2,0	28,0	0,20
129,0 x 2,0	37,0	0,36
154,0 x 2,0	43,0	0,50
156,0 x 3,0	44,0	0,94
204,0 x 2,0	62,0	0,80
206,0 x 3,0	63,0	1,20
254,0 x 2,0	72,0	1,30
256,0 x 3,0	73,0	1,95
306,0 x 3,0	83,0	2,50
